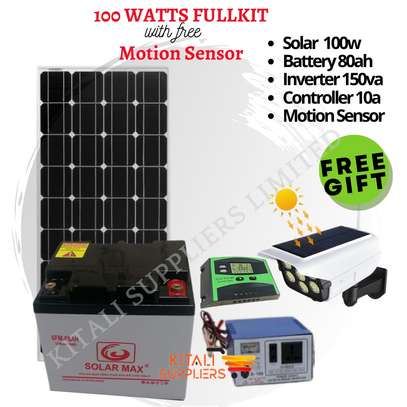

100w fullkit with a free motion sensor

1. Solar Panel (100W): A solar panel is a device that converts sunlight into electricity using photovoltaic cells. The 100W rating indicates the maximum power output of the panel under ideal conditions.

2. Battery (80Ah): The battery is used to store the electricity generated by the solar panel for later use. The 80Ah rating refers to the battery's capacity, which represents the amount of charge it can hold.

3. Inverter (150VA): An inverter is required to convert the DC (direct current) electricity produced by the solar panel and stored in the battery into AC (alternating current) electricity, which is suitable for powering household appliances. The 150VA rating indicates the maximum power output of the inverter.

4. Controller (10A): A controller, also known as a charge controller or regulator, is used to regulate and control the charging process of the battery from the solar panel. The 10A rating represents the maximum charging current that the controller can handle.

5. Motion Sensor: A motion sensor is a device that detects movement within its range and can be used to trigger certain actions, such as turning on lights or activating security systems.

When sunlight falls on the solar panel, it generates DC electricity. This electricity is then directed to the charge controller, which regulates and controls the charging process to prevent overcharging or damage to the battery. The charge controller ensures that only an appropriate amount of current flows from the solar panel to charge the battery.

The battery stores this energy for later use when sunlight is not available or during nighttime. The capacity of an 80Ah battery indicates that it can deliver a continuous current of 1 ampere for 80 hours or 10 amperes for 8 hours.

When power is required, the inverter converts the DC electricity stored in the battery into AC electricity. The 150VA rating of the inverter indicates its maximum power output capacity. It is important to note that the power output of the inverter should not exceed its rated capacity to avoid overloading and potential damage.

The motion sensor, although not directly related to the solar power system, can be integrated into the overall setup. For example, it can be used to trigger the activation of lights powered by the solar system when motion is detected, enhancing energy efficiency and security.

In summary, a solar power system with a 100W solar panel, 80Ah battery, 150VA inverter, 10A controller, and motion sensor works by harnessing sunlight to generate electricity, storing it in a battery for later use, converting it into usable AC electricity through an inverter, and potentially utilizing a motion sensor for automation purposes.
